SPECIFICATIONS

120mm Fan Options: 4

Application: Desktop

Brand Name: Braveman

Case Size: 326*161*262.5MM

Case Weight: 1.7

Chassis Type: Desktops

Form Factor: Mini-ITX

Front Ports: USB

Hign-concerned Chemical: None

Internal 2.5" Drive Bays: 3

Internal 3.5" Drive Bays: 1

Material: Aluminum Alloy

Max CPU Cooler Height: 136

Max GPU Length: 312

Model Number: C2

Origin: Mainland China

Power Model: ATX

Power Supply Mounted: Top

RGB Support: NO RGB

Type: Vertical

With Fan: No

With Power Supply: No

With Side Panel Window: Yes

Hardware Support Details:

1. Support ATX, SFX and SFX-L power supply (built-in extension cord).

- If you use an ATX power supply, the size limit of the motherboard is 244 * 225mm (it's better to use an ITX motherboard).

- If you are using an ATX power supply, it is recommended that the size of the graphics card be limited to 245 mm.

2. Support MATX, DTX and ITX motherboard, and the size limit is 244*244mm.

----If you use a 244 * 244mm MATX motherboard, can't use ATX PSU, only SFX-L or SFX PSU can be used.

3.Support long graphics card with size 323mm(IO chip included)*139mm(power cable included)*60mm, 4 slots thickness when install fan and hard disk at the bottom.

4. Air cooling: support up to 6 pcs 9025 (9225) fans or 3 pcs 12025 + 1 pcs 9025 (9225) fans.

On the rear window: 1 pc. 9025 (9225)

At the top: 2 pcs 9025 (9225) or 1 pcs 12025

Bottom: 3 pcs 9025 (9225) or 2 pcs 12025

(Note: The 9025 (9225) fan is recommended as installing a 12025 fan is easily affected by the motherboard and hardware cables.)

5.Support hard disk: 1 * 3.5 inch hard disk and 3 * 2.5 inch solid-state hard disk at the bottom.

or 1*3.5 inch and 1*2.5 inch hard disk and 1*12025 fan

or 3*2.5 inch hard disk and 2*12025 fan at the same time

or 2*2.5 inch hard disk and 3*9025 fan

6.CPU height limit: 136mm

Package Including:

Case x 1

Switch Wire x 1

Accessories box x 1

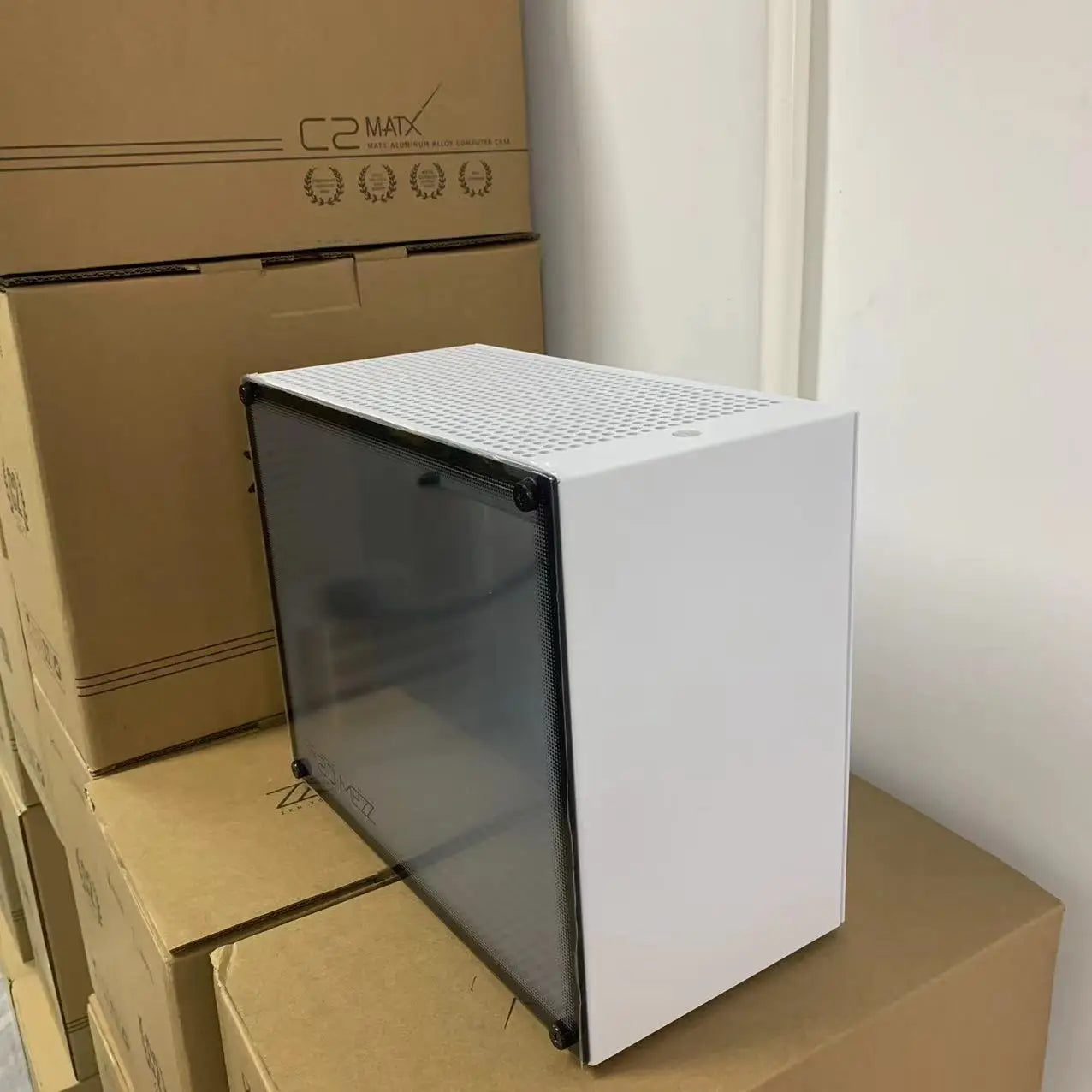

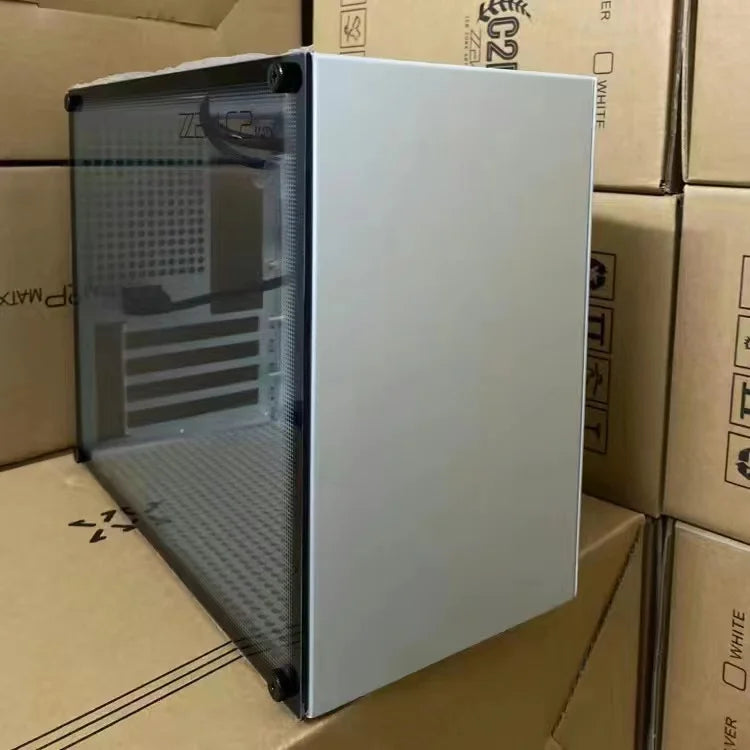

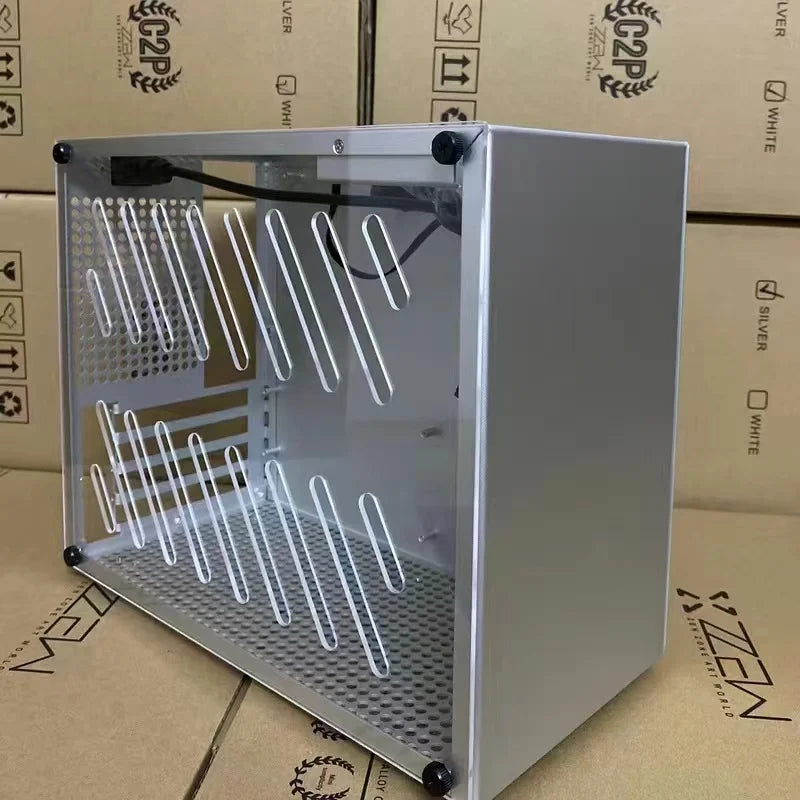

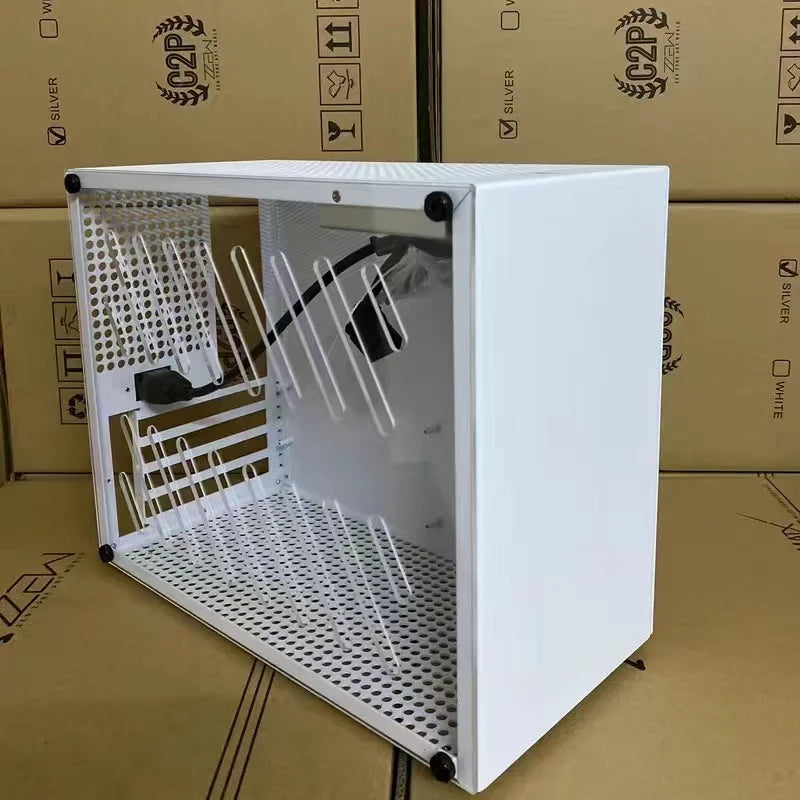

                                                           Real shot

Installation Guide：
