SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: ZSUS

Chipset: AMD B450

Chipset Manufacturer: AMD

Choice: yes

Hign-concerned Chemical: None

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Others

Quality Certification: ce

RAID Supported: No

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Enthusiast & Overclocking,Audio & Video,Office

With CPU: No

Motherboard information:

>>Brand: ZSUS.

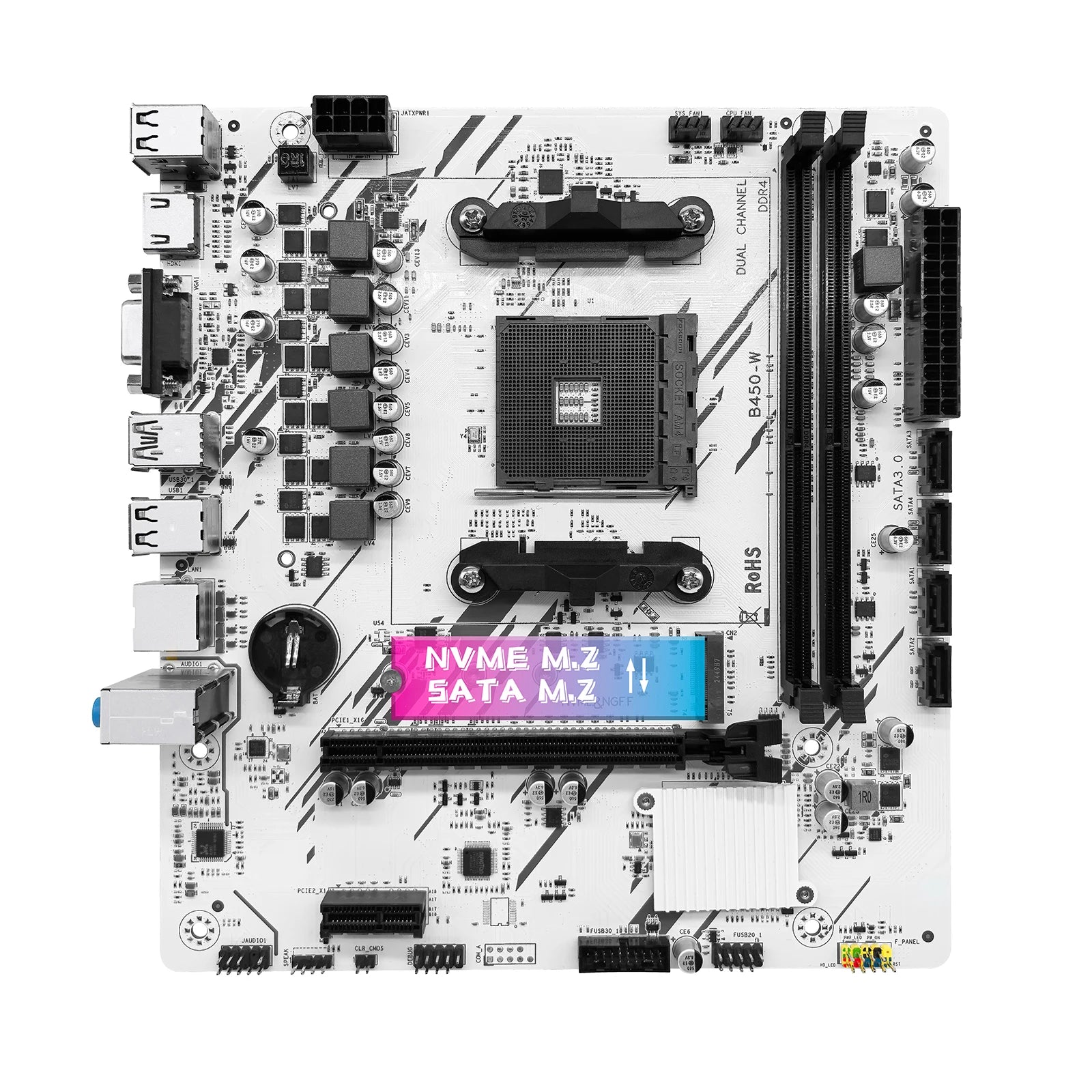

>>Motherboard model: B450-W

>>Processor: Supports AMD AM4-pin series processors (supports Ryzen 1-5 generations).

>> Chipset: B450 chipset.

>>Memory

Technology: Dual Channel DDR4. Support 2133/2666/3000/3200/3600MHz.

Maximum capacity 64GB (32G x 2).

Memory slot: 2*288 PIN DDR4.

Supported memory types: Only DDR4 desktop memory is supported.

(Note: Please use Samsung, Kingston, Sandee, Micron, Hynix and other international brands. Other brands may not be compatible.)

Package contains:

#Main products: ZSUS B450 motherboard*1 piece;

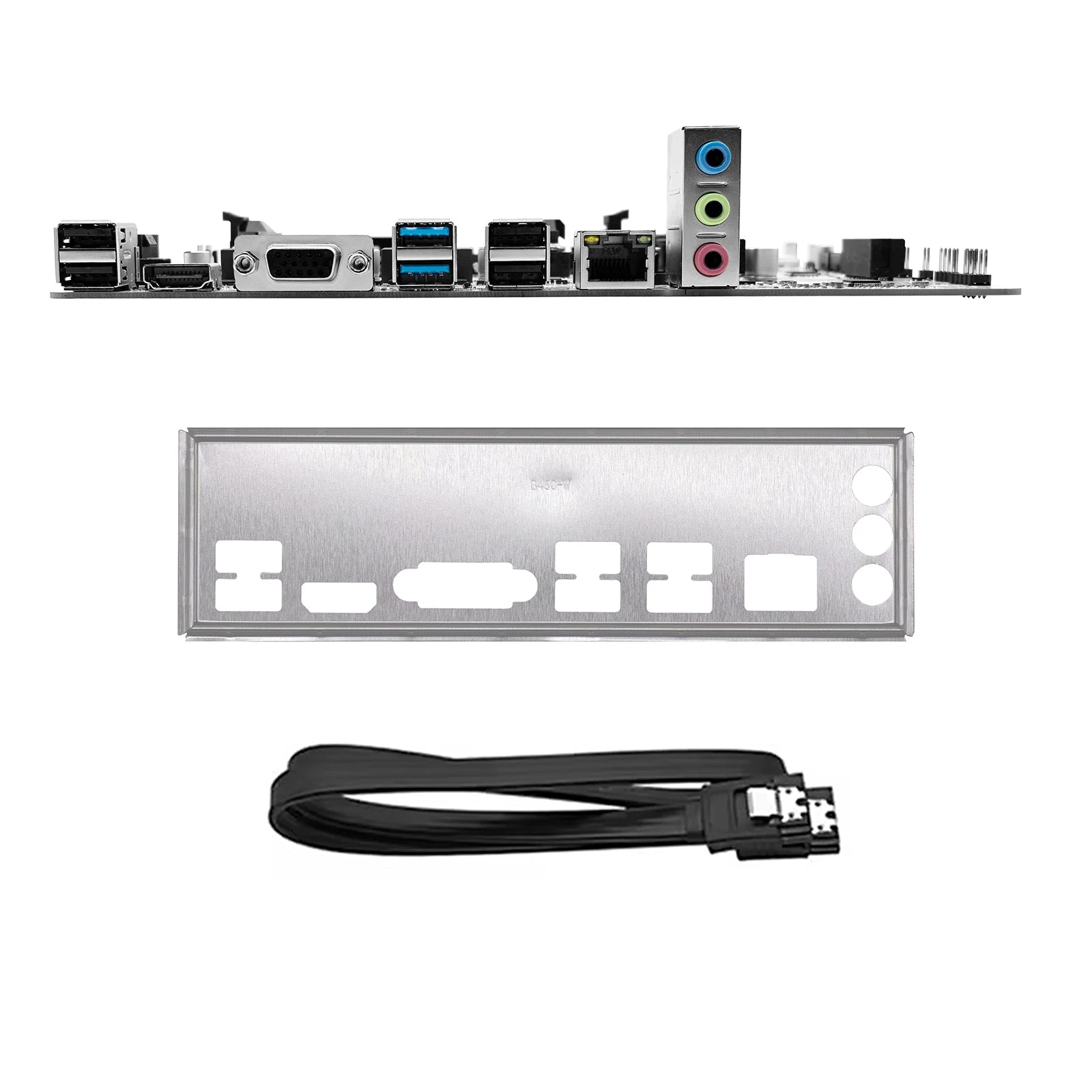

##Bonus accessories: I/O shield, SATA cable.

### They are all packaged after manual testing before sending. If there are any gifts missing, please understand!

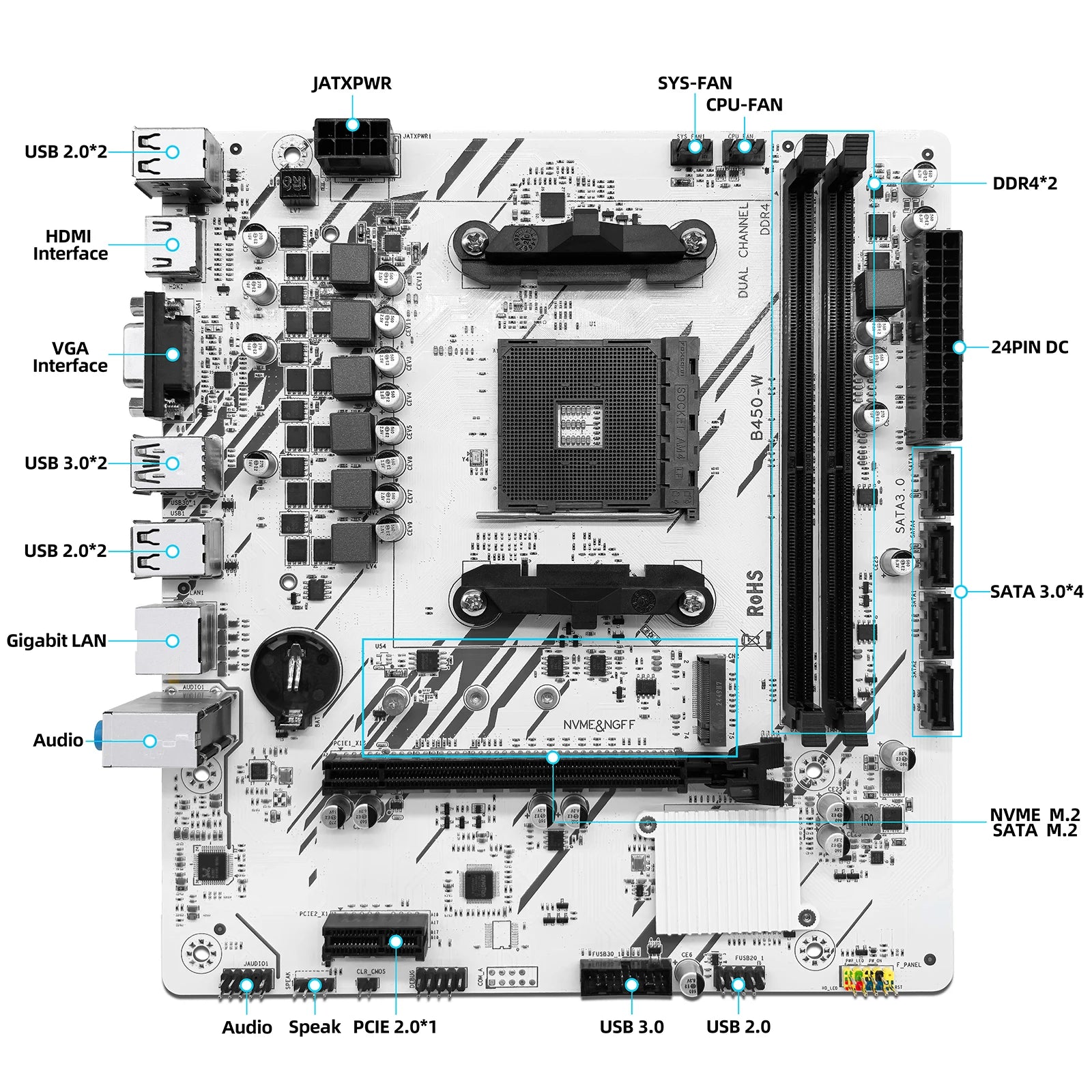

Rear I/O

Display interface: supports VGA & HDMI display.

USB interface: 2 USB 2.0; 2 USB3.0.

Ethernet: Gigabit network adapter port.

Audio: 1 (mic in, line out, line in).

>> Internal connector

SATA interface: 4 (SATA3.0).

M.2: 1 (NVME/SATA automatic recognition switching).

PCIe: 1 X16 3.0 PCIe and 1 X1 PCIe.

>> Dimensions

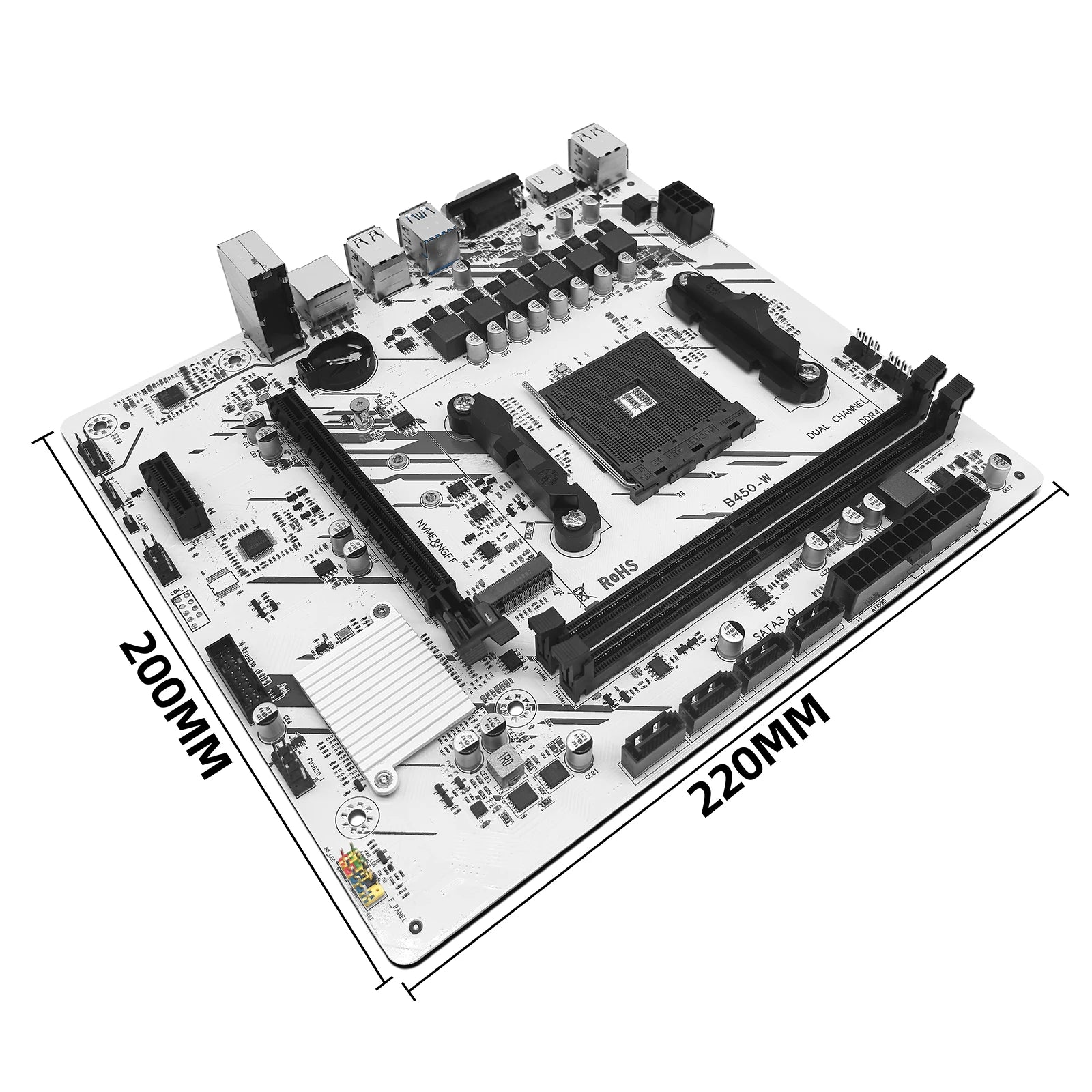

Size: 220mm*200mm.

Motherboard weight (including packaging): about 0.8 kg.
