SPECIFICATIONS

Application: Desktop

Audio Channels: 5.1

Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 2.0

Brand Name: SOYO

Chipset: AMD B550

Chipset Manufacturer: AMD

Choice: yes

Form Factor: Micro-ATX

Hign-concerned Chemical: None

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 2

Number of PCI: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5

Quality Certification: ROHS

RAID Supported: No

Socket Type: AM4

Special Features: Cooling Armor,None

Storage Interface Type: SATA,SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production

With CPU: No

The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden act post and custom

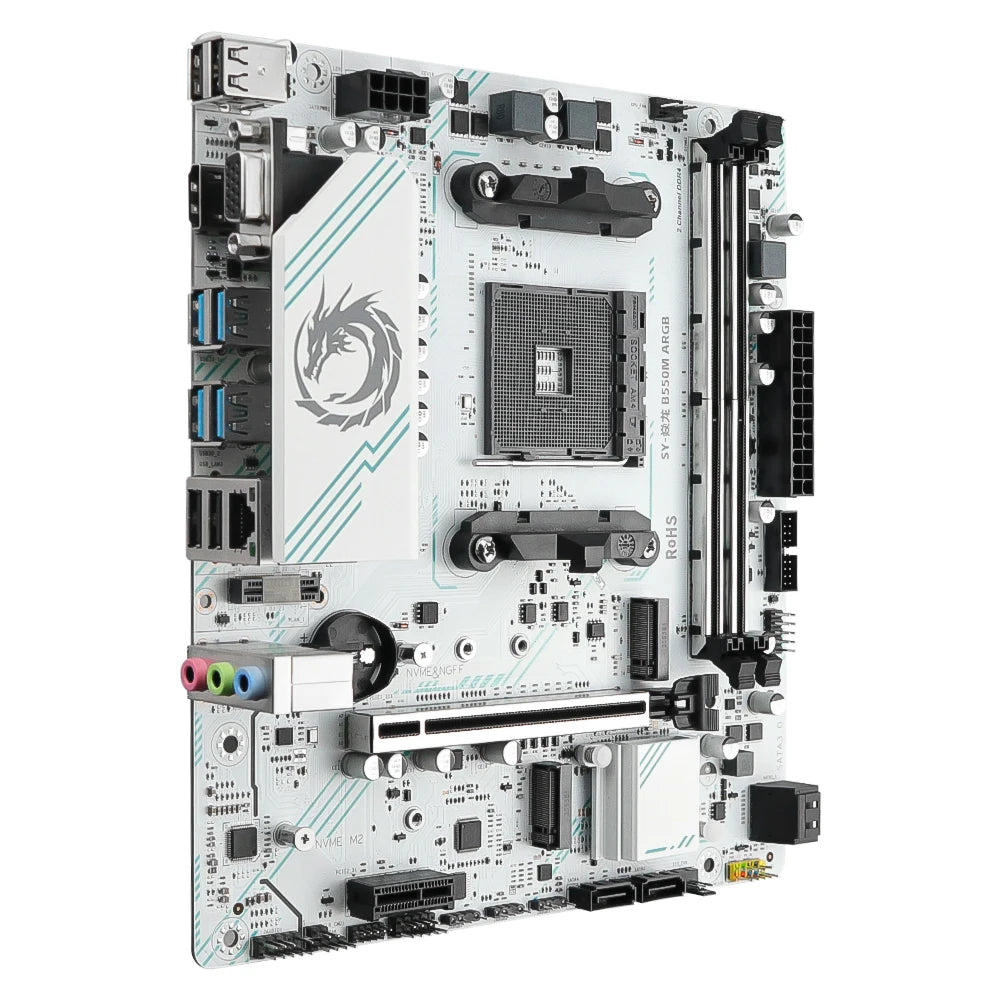

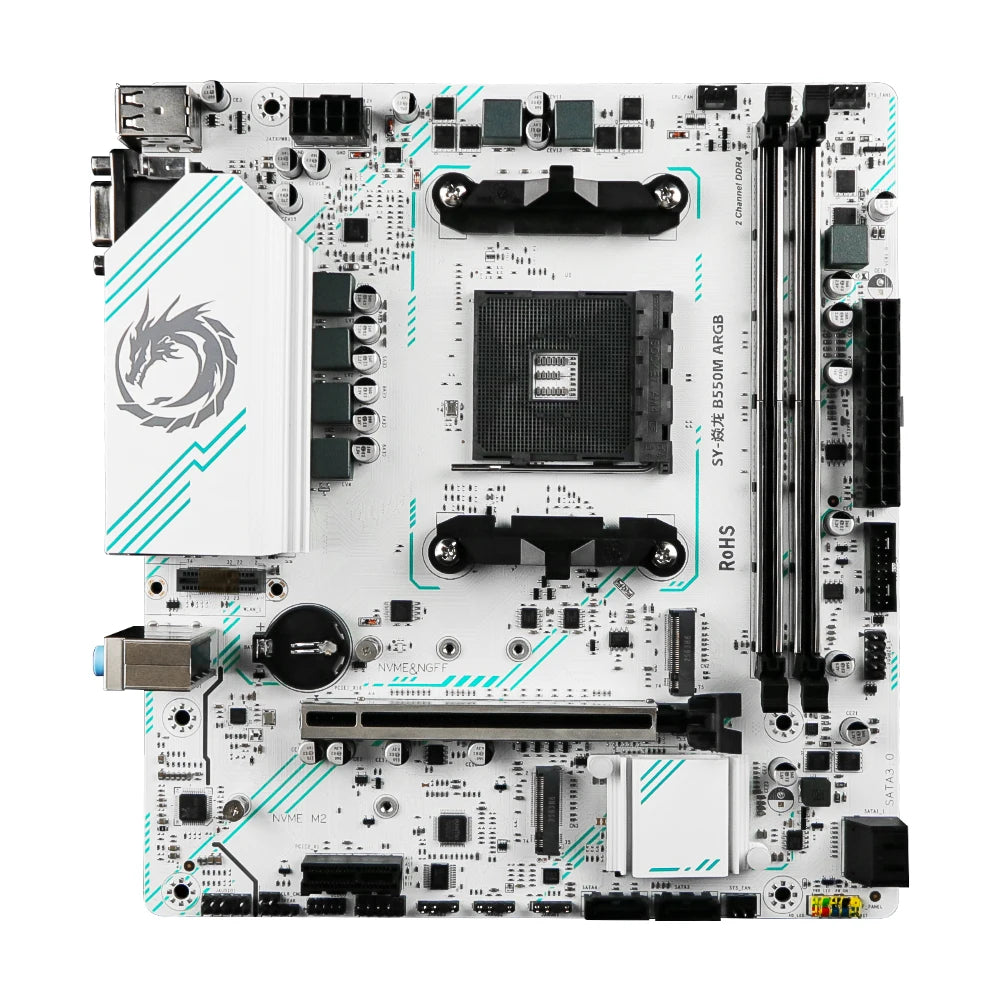

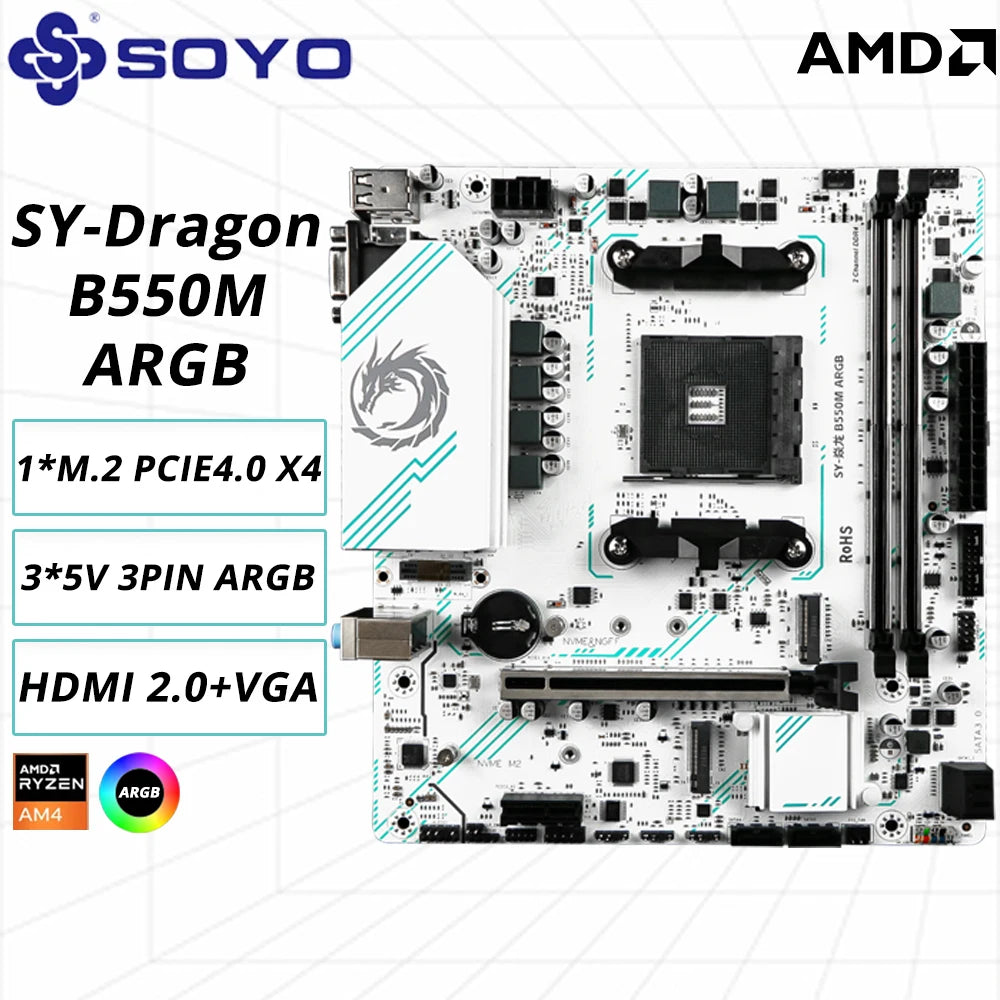

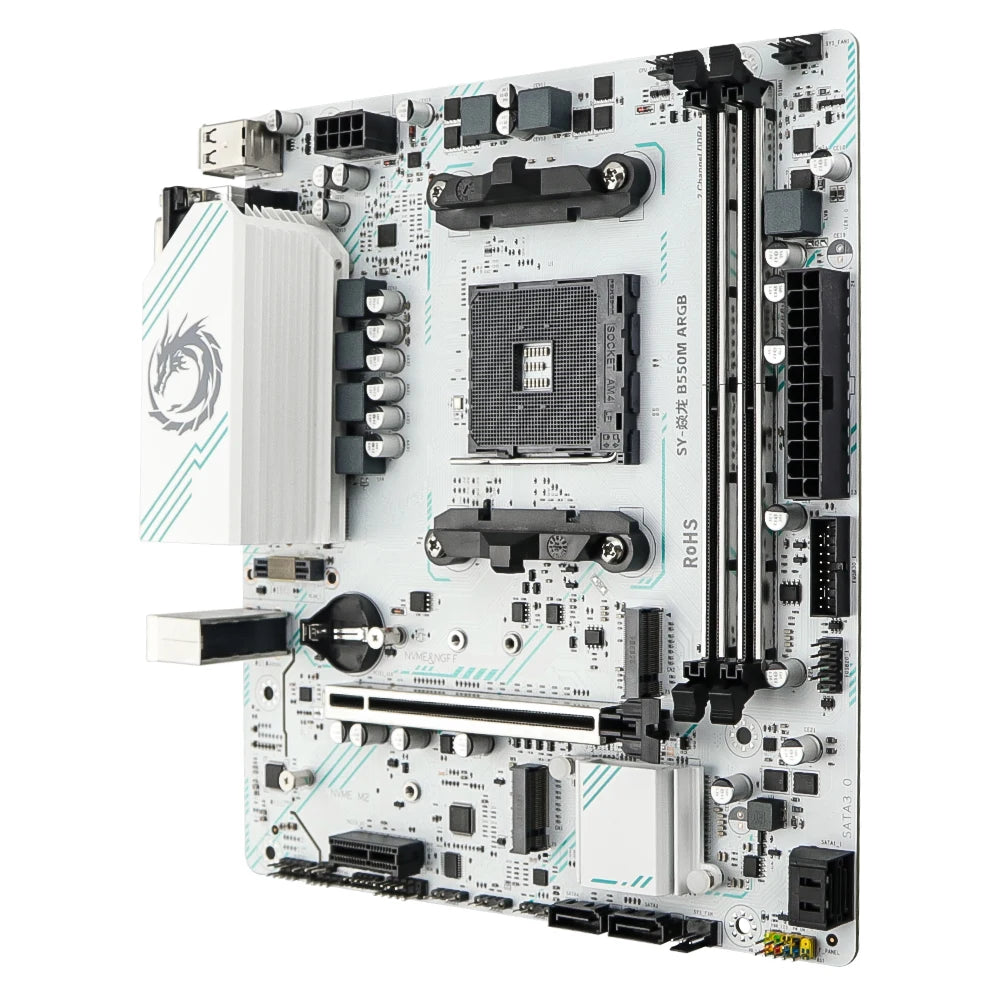

Motherboard parameters

Motherboard chip: AMD B550

CPU: Support AMD Ryzen 3000 (excluding G) series/4000,4000 G series/5000,5000 G series processors

Example: R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D, etc.

Memory: DDR4*2 dual channels; support 2133/2400/2666/3000/3200/3600MHz (OC+), support XMP, maximum support 64G (32G*2)

Storage: 2*M.2 slots (CN2: PCIE4.0 X4/SATA 3.0)

(CN3: PCIE3.0 X4); 4*SATA 3.0 interface

Display interface: 1*HDMI 2.0 interface, 1*VGA interface

Network: 1*RJ45 interface

Network card chip: Realtek RTL8111H Gigabit network card chip

PCIE slot: 1*PCIE X16 slot (PCIE4.0 X16); 1*PCIE X1 slot (PCIE3.0 X1); 1*WIFI slot (PCIe protocol)

Audio: 1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin

Audio chip: Realtek ALC897 HD audio chip

USB interface/IO interface: 4*USB3.2 GEN1 (5Gbps), 4*USB2.0

Built-in pins: 1 set of USB2.0 pins (expandable 2 USB2.0 ports)；

1 set of USB3.0 pins (expandable 2 USB3.0 ports); 5Gbps

Function pin 1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+1*3Pin SYS fan; 1*4Pin Speak pin; 2*5Pin COM pin; 2*5Pin Debug pin; 3*5V 3PIN ARGB pin

Power input: 24Pin+8Pin ATX power socket

Product size: M-ATX motherboard specification 195x 216 mm

Working temperature: -10℃~60℃

Storage temperature: -25℃~70℃

Power consumption: Standby power consumption: 30-70W Full load power consumption: 200-450W

Others: 1*CLR CMOS 2PIN pin
