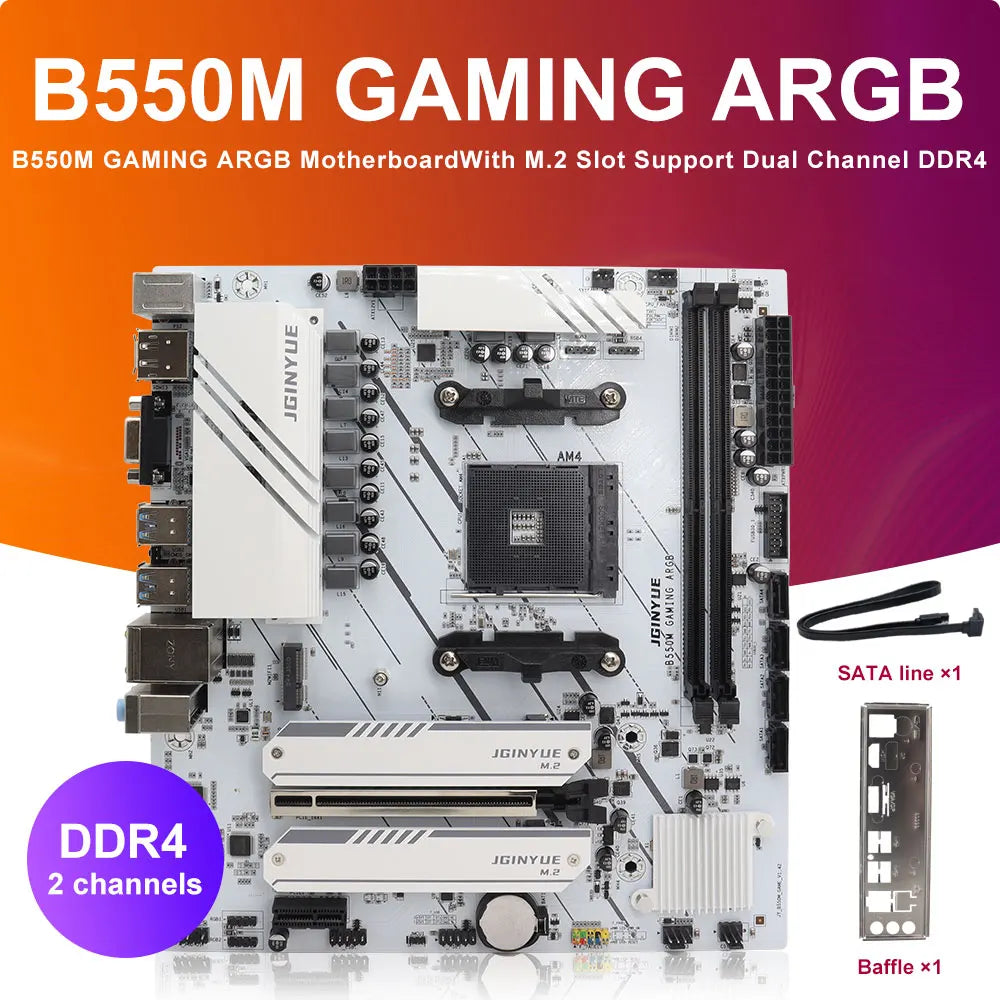

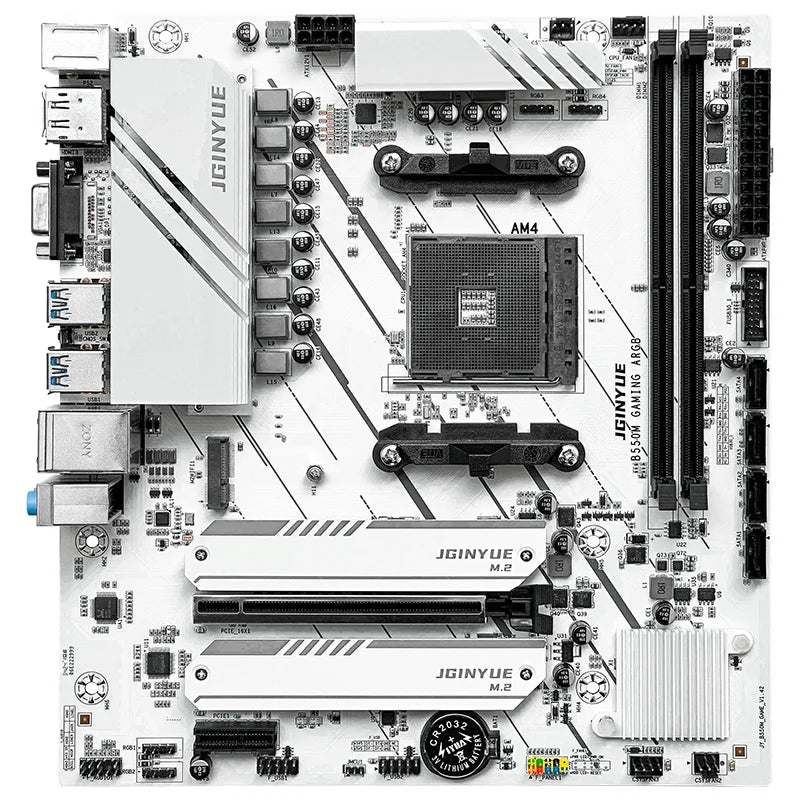

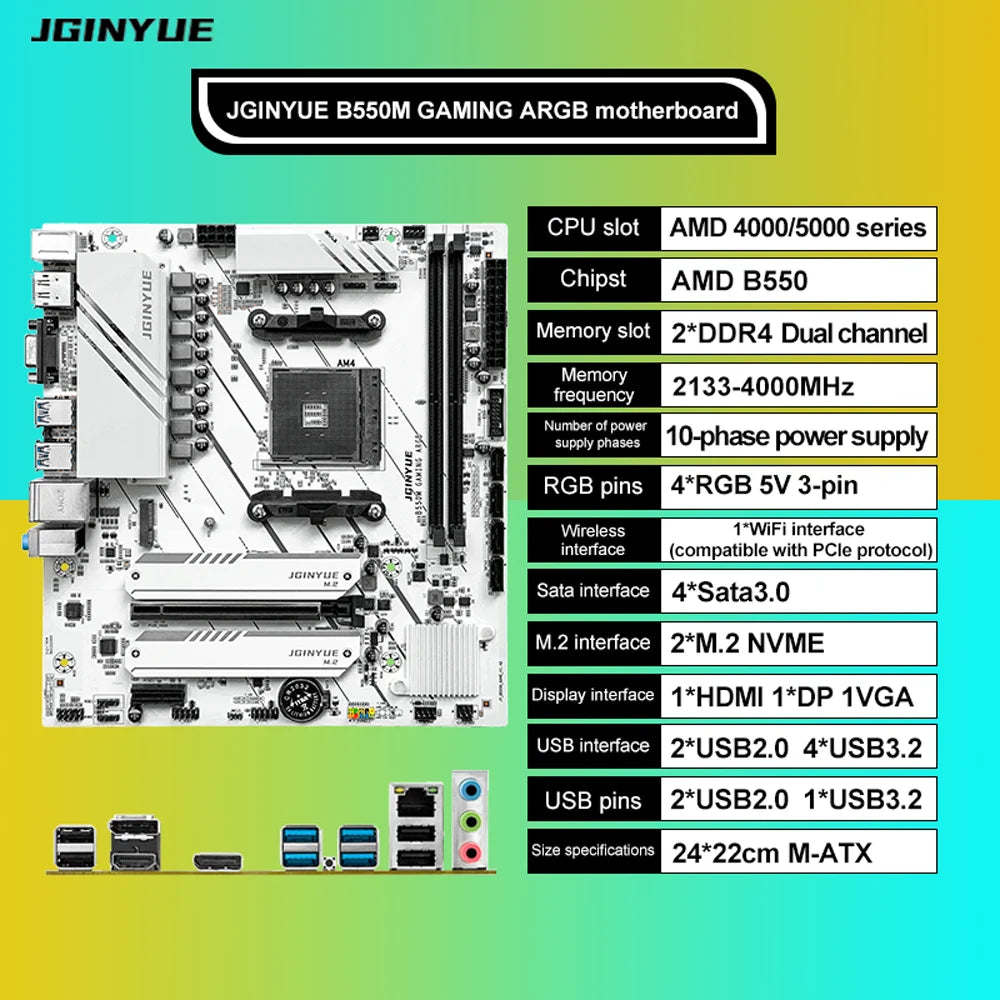

JGINYUE B550M GAMING ARGB motherboard

1.Supports AMD AM4 4000 and 5000 series processors
Supports dual channel 2xDDR4 memory slots with a maximum capacity of 64G

2.Motherboard model:B550M GAMING ARGB

3.Chipset:AMD B550 Chipset
CPU pins:Supports AMD AM4 4000 and 5000 series processors

4.Memory slot:2xDDR4 memory slots

5.Memory capacity:Maximum support for 64GB (32GB * 2)

6.Memory frequency:Dual channel support 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)

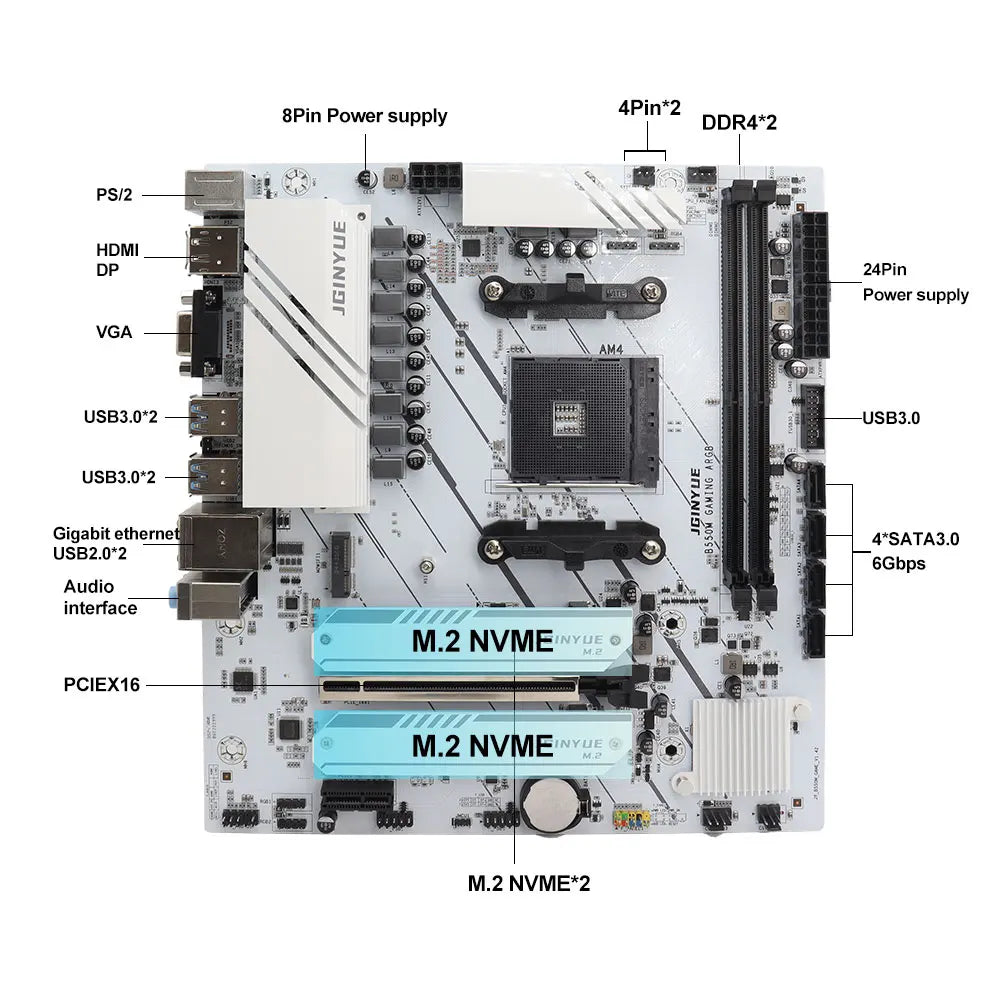

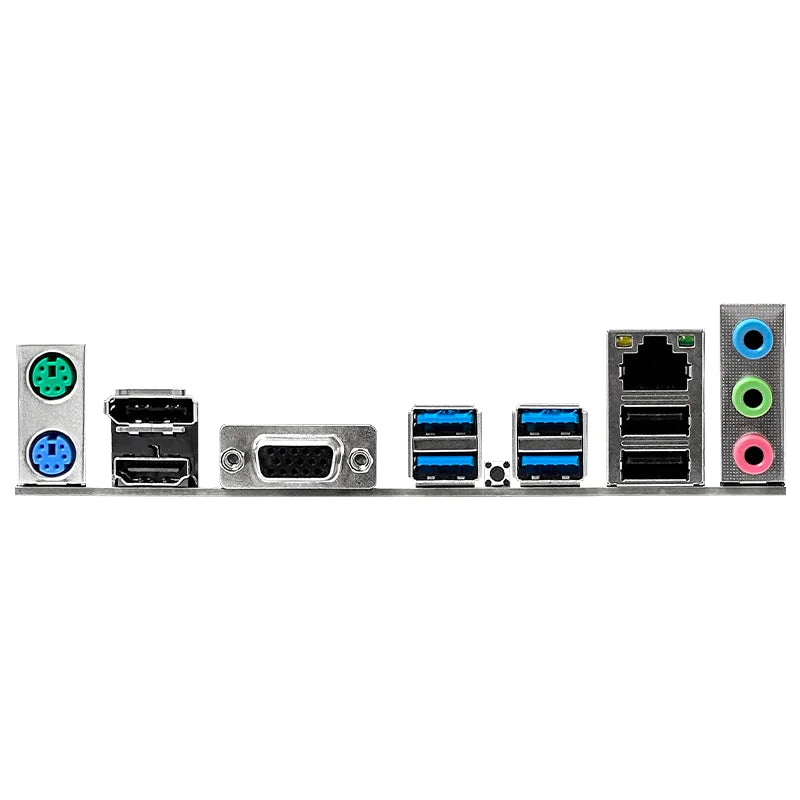

7.Display interface:1xHDMI，1xDP，1xVGA

8.Storage interface:4xSATA3.0 6Gbps； 1xM.2 nvme protocol interface (directly connected to CPU automatic recognition 3.0 or 4.0),1xM.2 nvme protocol 3.0 interface:USB interface

9.Rear 4xUSB3.2, 2xUSB2.0; Front mounted 1xUSB3.2 pin expandable 2xUSB3.2, 2xUSB2.0 pin expandable x USB2.0

10.PCIe interface:1xPCI Express x16 slot (directly connected to CPU automatically recognized based on CPU), 1xPCI Express x1 slot

11.Wireless interface:1xWiFi interface (compatible with PCIe protocol)

12.Onboard sound card:Realtek ALC897
Onboard network card:Realtek 8111H

13.Power socket:Mainboard powered by 24 pins, CPU powered by 8 pins

14.Fan pin:2x4 needles 2x3 needles

15.Number of power supply phases:10 phase power supply
PCB layers:6-layer PCB

16.RGB pin:4xRGB 5V 3-pin

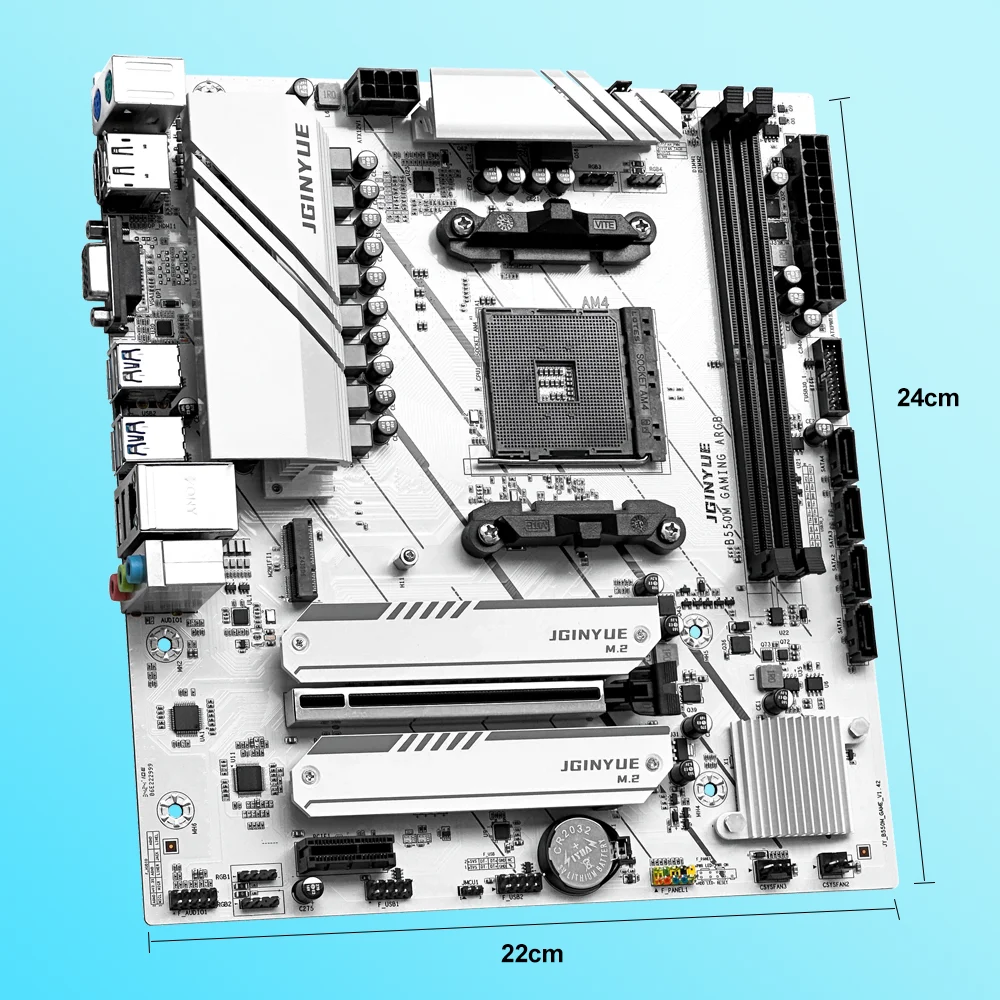

17.Size specifications:24cmx22cm M-ATX

18.support system:Windows10；Windows11
Other interfaces:1 one click BIOS clear button; PS/2 keyboard and mouse interface
