100% Original A8 5500 A8 5600 A8 6500 A8 6600 A8-5500 A8-5600 A8-6500 A8-6600 Trinity socket FM2 quad core CPU

£10.41 GBP

~~£20.82 GBP~~ £10.41 GBP

Sale Sold out

Taxes included.

Color A8-6600 A8-6500 A8-5600 A8-5500

Quantity

SPECIFICATIONS

Application: Computer

Brand Name: NoEnName_Null

Choice: yes

Condition: Used

Dissipation Power: standard

Hign-concerned Chemical: None

Model Number: A8-5500 A8-5600 A8-6500 A8-6600

Operating Temperature: standard

Origin: Mainland China

Package: FM2

Supply Voltage: standard

Type: Drive IC

is_customized: Yes

semi_Choice: yes

Note:

(Used product) - (one-year warranty) (strict testing) - (sent within 48 hours)

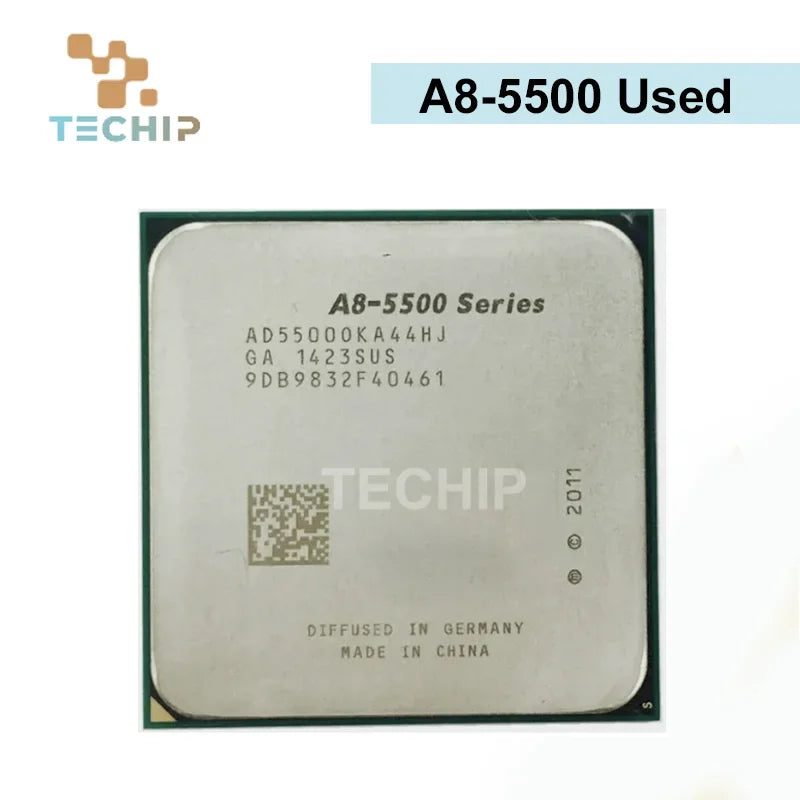

A8-5500 specifications

The specs can be for short-term
listings on auction and classifieds sites

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	A8-Series
Model number ?	A8-5500
CPU part numbers	AD5500OKA44HJ is an OEM/tray microprocessor AD5500OKHJBOX is a boxed microprocessor with fan and heatsink
Frequency ?	3200 MHz
Turbo frequency	3700 MHz
Package	904-pin organic lidded micro Pin Grid Array (UOF904)
Socket	Socket FM2
Size	1.57" x 1.57" / 4cm x 4cm
Weight	1.4oz / 39g (CPU) 9.6oz / 273.2g (box)
Fan/heatsink	Z7LH01R201
Introduction date	July 2012 (shipped in OEM PCs) October 2, 2012 (boxed processors)
Price at introduction	$101
Architecture / Microarchitecture
Microarchitecture	Piledriver
Platform	Virgo
Processor core ?	Trinity
Core stepping ?	TN-A1
CPUID	610F01
Manufacturing process	0.032 micron 1303 million transistors
Die size	246mm2
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated (shared between two cores in each module)
Level 1 cache size ?	2 x 64 KB 2-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches
Level 2 cache size ?	2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	None
Cache latency	3 (L1 cache)
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand F Multiply-Add instructions FMA4 / 4-operand F Multiply-Add instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V / AMD Virtualization technology EVP / Enhanced Virus Protection ? Turbo Core 3.0 technology
Low power features	Core C1, C1E, C6 and CC6 states Package S3, S4 and S5 states PowerNow!
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon HD 7560D Shader cores: 256 Base frequency (MHz): 760
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9
Other peripherals	PCI Express 2.0 Unified Video Decoder 3.2 ?
Electrical / Thermal parameters
V core ?	0.825V - 1.475V
Maximum operating temperature ?	71.3°C
Thermal Design Power ?	65 Watt

AMD A8-5600K specifications

The specs can be for short-term
listings on auction and classifieds sites

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	A8-Series
Model number ?	A8-5600K
CPU part numbers	AD560KWOA44HJ is an OEM/tray microprocessor AD560KWOHJBOX is a boxed microprocessor with fan and heatsink
Frequency ?	3600 MHz
Turbo frequency	3900 MHz
Package	904-pin organic lidded micro Pin Grid Array (UOF904)
Socket	Socket FM2
Size	1.57" x 1.57" / 4cm x 4cm
Weight	1.4oz / 39g
Introduction date	October 2, 2012
Price at introduction	$101
Architecture / Microarchitecture
Microarchitecture	Piledriver
Platform	Virgo
Processor core ?	Trinity
Core stepping ?	TN-A1
CPUID	610F01
Manufacturing process	0.032 micron 1303 million transistors
Die size	246mm2
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated (shared between two cores in each module)
Level 1 cache size ?	2 x 64 KB 2-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches
Level 2 cache size ?	2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	None
Cache latency	3 (L1 cache)
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand F Multiply-Add instructions FMA4 / 4-operand F Multiply-Add instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V / AMD Virtualization technology EVP / Enhanced Virus Protection ? Turbo Core 3.0 technology
Low power features	Core C1, C1E, C6 and CC6 states Package S3, S4 and S5 states PowerNow!
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon HD 7560D Shader cores: 256 Base frequency (MHz): 760
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9
Other peripherals	PCI Express 2.0 Unified Video Decoder 3.2 ?
Electrical / Thermal parameters
V core ?	0.825V - 1.475V
Maximum operating temperature ?	74°C
Thermal Design Power ?	100 Watt

AMD A8-6500 specifications

The specs can be used for short-term
listings on auction and classifieds sites

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	A8-Series
Model number ?	A8-6500
CPU part numbers	AD6500OKA44HL is an OEM/tray microprocessor AD6500OKHLBOX is a boxed microprocessor with fan and heatsink
Frequency ?	3500 MHz
Turbo frequency	4100 MHz
Boosted P states [1]	#1: 4100 MHz, 1.225V #2: 3900 MHz, 1.175V #3: 3700 MHz, 0.975V
Package	904-pin organic lidded micro Pin Grid Array (UOF904)
Socket	Socket FM2
Size	1.57" x 1.57" / 4cm x 4cm
Weight	1.4oz / 39g
Introduction date	June 4, 2013
Price at introduction	$112
Architecture / Microarchitecture
Microarchitecture	Piledriver
Processor core ?	Richland
Core stepping ?	RL-A1
CPUID	610F31
Manufacturing process	0.032 micron 1.3 billion transistors
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated (shared between two cores in each module)
Level 1 cache size ?	2 x 64 KB 2-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches
Level 2 cache size ?	2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	None
Cache latency	3 (L1 cache)
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions FMA4 / 4-operand Fused Multiply-Add instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V / AMD Virtualization technology EVP / Enhanced Virus Protection ? Turbo Core 3.0 technology
Low power features	Core C1, C1E, C6 and CC6 states Package S3, S4 and S5 states PowerNow!
Low power P states [1]	#1: 3200 MHz, 0.725V #2: 2700 MHz, 0.6V #3: 2200 MHz, 0.375V #4: 1700 MHz, 0.15V
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon HD 8570D Shader cores: 256 Base frequency (MHz): 800
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9
Other peripherals	PCI Express 2.0 Unified Video Decoder 3.2 ?
Electrical / Thermal parameters
Maximum operating temperature ?	71.3°C
Thermal Design Power ?	65 Watt

Type	CPU / Microprocessor
Market segment	Desktop
Family	A8-Series
Model number ?	A8-6600K
CPU part numbers	AD660KWOA44HL is an OEM/tray microprocessor AD660KWOHLBOX is a boxed microprocessor with fan and heatsink
Frequency ?	3900 MHz
Turbo frequency	4200 MHz
Boosted P states [1]	#1: 4200 MHz, 1.35V #2: 4100 MHz, 1.275V #3: 4000 MHz, 1.2V
Package	904-pin organic lidded micro Pin Grid Array (UOF904)
Socket	Socket FM2
Size	1.57" x 1.57" / 4cm x 4cm
Weight	1.4oz / 39g
Introduction date	June 4, 2013
Price at introduction	$112
Architecture / Microarchitecture
Microarchitecture	Piledriver
Processor core ?	Richland
Core stepping ?	RL-A1
CPUID	610F31
Manufacturing process	0.032 micron 1.3 billion transistors
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated (shared between two cores in each module)
Level 1 cache size ?	2 x 64 KB 2-way set associative shared instruction caches 4 x 16 KB 4-way set associative data caches
Level 2 cache size ?	2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	None
Cache latency	3 (L1 cache)
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand F Multiply-Add instructions FMA4 / 4-operand F Multiply-Add instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V / AMD Virtualization technology EVP / Enhanced Virus Protection ? Turbo Core 3.0 technology
Low power features	Core C1, C1E, C6 and CC6 states Package S3, S4 and S5 states PowerNow!
Low power P states [1]	#1: 3600 MHz, 0.925V #2: 3000 MHz, 0.675V #3: 2500 MHz, 0.45V #4: 1900 MHz, 0.275V
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon HD 8570D Shader cores: 256 Base frequency (MHz): 844
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1866 Maximum memory bandwidth (GB/s): 29.9
Other peripherals	PCI Express 2.0 Unified Video Decoder 3.2 ?
Electrical / Thermal parameters
Maximum operating temperature ?	74°C
